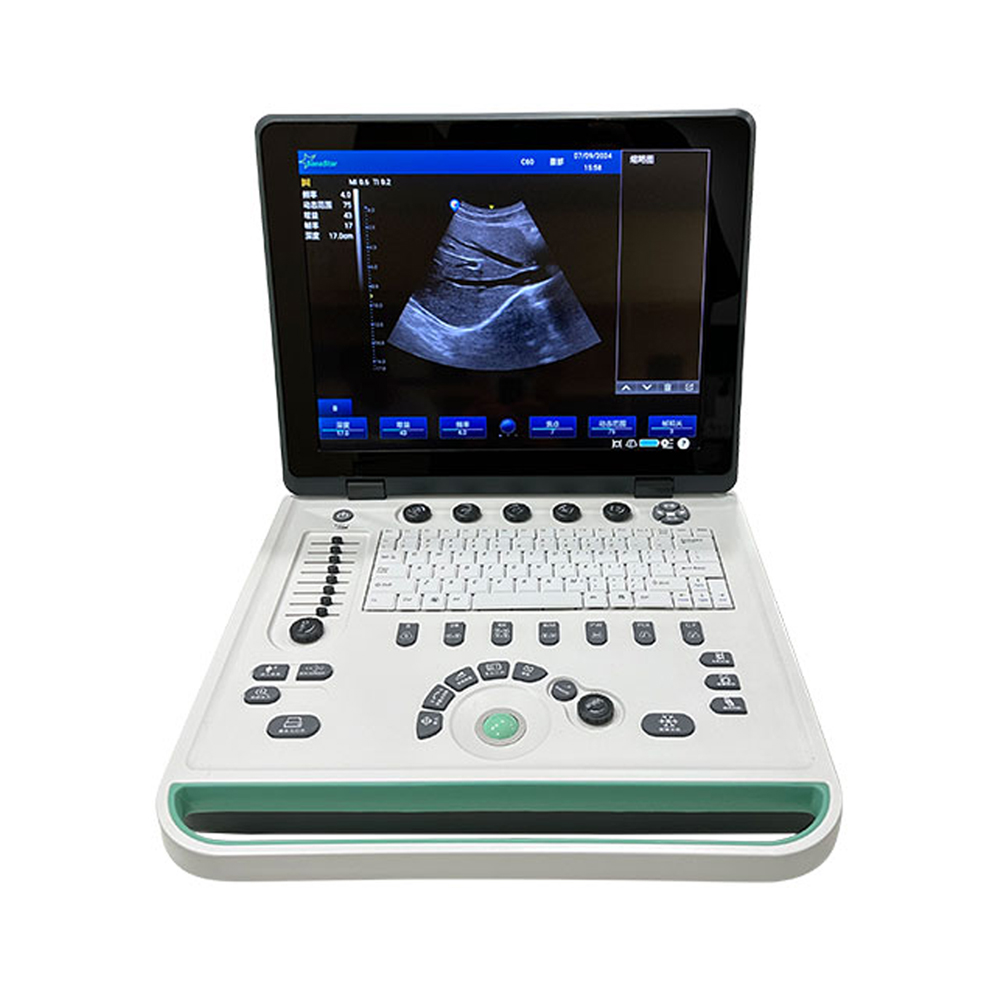

Laptop Color Doppler RK-8C
- One-click optimization for efficient operation
- Multilingual interface, widely applicable
- Automatic reporting and workstation integration
- Energy-saving and portable design
Application Department
Cardiac examination,Obstetrics,Gynecology,Urology,Pediatrics
Leave A MessageLive ChatProduct Introduction

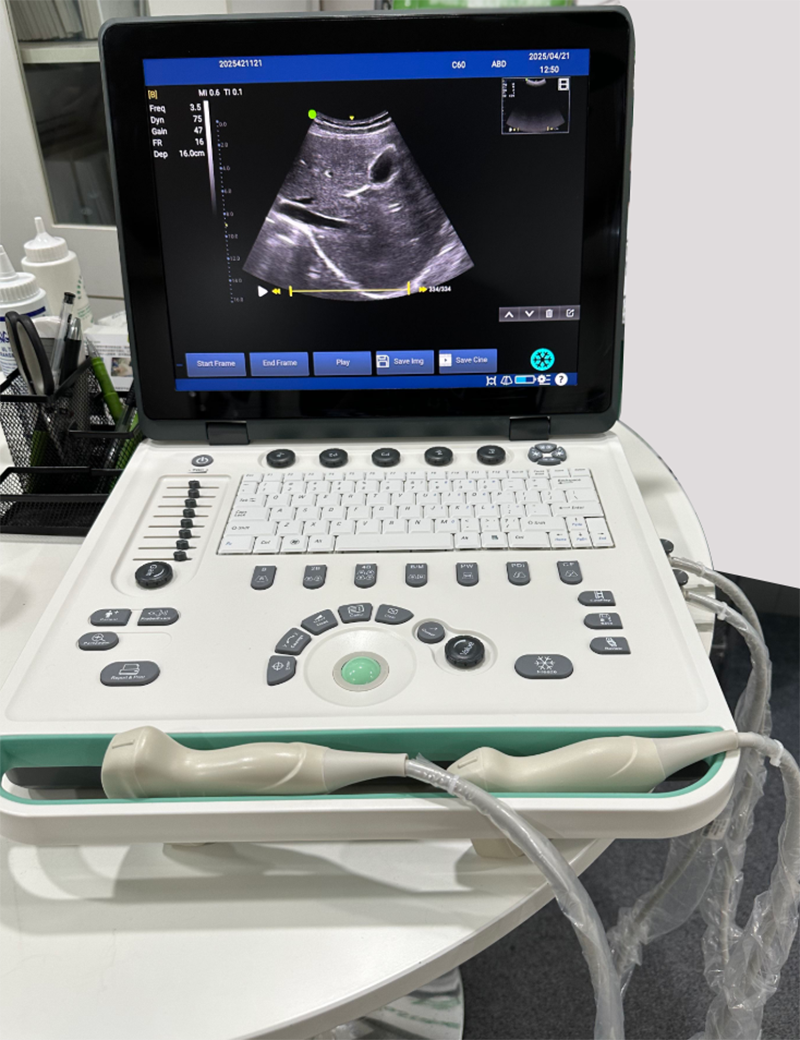

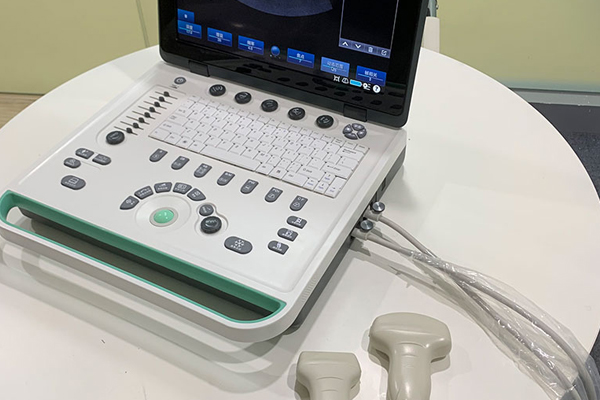

The RK-8C is a notebook-style color Doppler ultrasound diagnostic instrument based on an ARM architecture system. It features a 15-inch high-definition LED screen (1024×768 resolution), providing clear images and easy operation. The device incorporates preset conditions optimized based on extensive clinical experience and a one-click optimization function, allowing for quick parameter adjustments for different departments and examination sites, thus improving work efficiency.
Specification:
-Image mode: B,M,2B,B/M,4B,PW
-Gray scale: 256 gray, and pseudo color
-Display: 15”LCD monitor
-Scanning depth: 300mm
-Transducer frequency: Convex 2.5/3.5/4.0/5.0, linear 6.0/7.5/8.0/9.0/10/11, Micro-Convex 5.0/6.0/6.5/7.0/7.5/8.0,
Transvaginal 5.0/6.5/7.0/7.5
-Digital technology: Wide-angle imaging, Panoramic focusing technology, Rolling M technology
-Imaging Pre-processing: Cloud processing technology, 8-segment TGC, Gain(B&W),
Dynamic range, Persistence, M Soften, Noise suppression
-Imaging Post-processing: Image enhancement, Gray Map, Colorize Map, Ti
-Optimize
-Store: built-in 128G memory
-Communication: DICOM 3.0
-Print: by video printer, or by laser printer
-Report edit function
Specification:
-Image mode: B,M,2B,B/M,4B,PW
-Gray scale: 256 gray, and pseudo color
-Display: 15”LCD monitor
-Scanning depth: 300mm
-Transducer frequency: Convex 2.5/3.5/4.0/5.0, linear 6.0/7.5/8.0/9.0/10/11, Micro-Convex 5.0/6.0/6.5/7.0/7.5/8.0, Transvaginal 5.0/6.5/7.0/7.5
-Digital technology: Wide-angle imaging, Panoramic focusing technology, Rolling M technology
-Imaging Pre-processing: Cloud processing technology, 8-segment TGC, Gain(B&W),
Product Gallery
Product Parameters
Dynamic range, Persistence, M Soften, Noise suppression
-Imaging Post-processing: Image enhancement, Gray Map, Colorize Map, Ti
-Optimize
-Store: built-in 128G memory
-Communication: DICOM 3.0
-Print: by video printer, or by laser printer
-Report edit function
-Measurement & Calculations:
B mode: Distance, angle, area, volume, trace length, distance ratio
M mode: Distance, time, slope, HR
Software packages: Abdomen, OB, gynecology, small Part

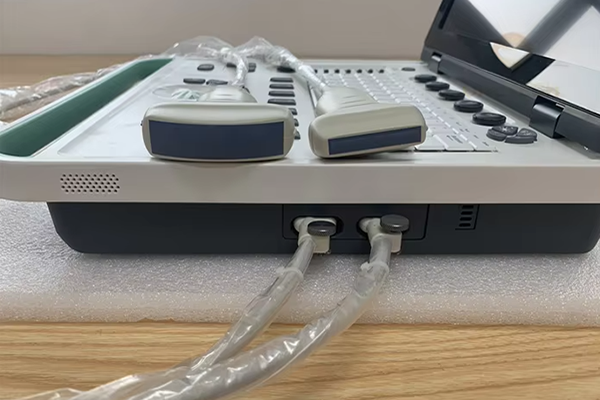

-Transducer connector: 2

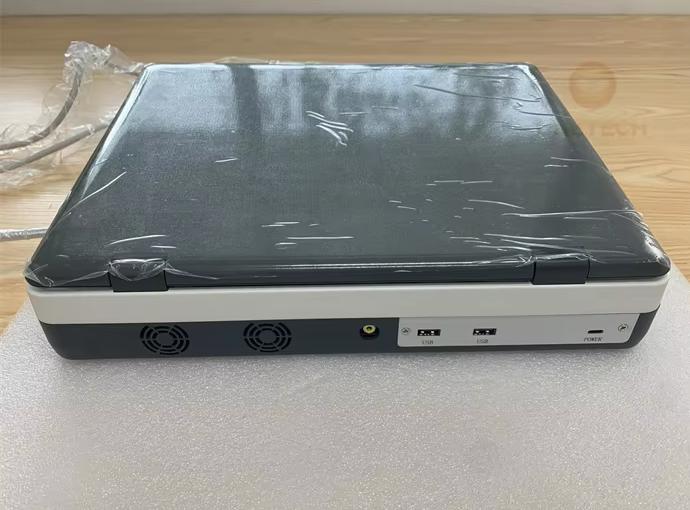

-Peripheral ports: 1 AV video port,2 USB ports,1 power inlet port
-Power supply: AC 100-240V 50/60HZ <80VA
-Built-in battery: work 3 hours
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg
Standard configuration:
One host, one convex probe, one aluminum trunk
Optional:
Transvaginal, linear, rectal, micro-convex probe; Trolley; Video printer; Laser printer.
