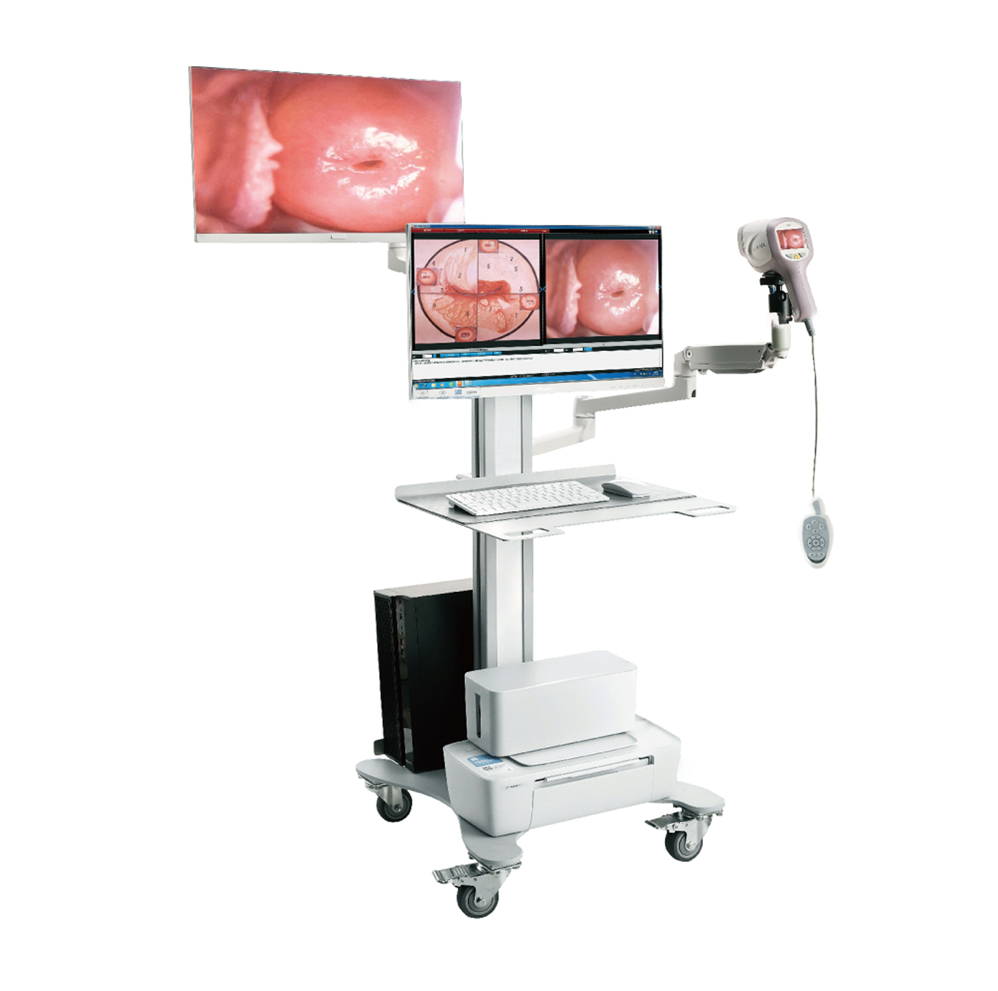

Colposcope RK-2200IHD

①Camera

Using Sony's latest HD technology, 3.27 million

effective pixels, 30 times Optical zoom, with

high-quality amplification effect can be clearly

observed a variety of small pathological cells, can be

 accurately positioning the biopsy of the lesion site,

help improve the diagnosis of various cervical

diseases, pre-cancerous screening accuracy, reduce

missed Diagnosis. Advanced spot subtraction

imaging technology and optical image stabilization

technology, reduce the light spot caused by the

phenomenon of reflection and blurred images by

lens' shaking and offsetting.

②Control handle

Adopt Palm-type handle design, humanized

operation panel, Silicone button Oval layout, can

realize zoom, focus, imaging mode, acetic acid

timing, image marking,brightness adjustment and

other functions with single hand.

③Bracket

Full-damping Bracket, 360° adjustment, can

automatically hover at any Angle.

④Trolley

Metal and integrated Three-arm design for all types of inspection beds. Flexible positioning of the arm support, can arbitrarily

adjust the position and angle of the lens,to meet the needs of clinical examination and operation, to provide doctors with no

dead angle of observation vision.

⑤Patient Screen

Dual screen design, Patients can intuitively understand the disease situation, conve-nient for doctors to communicate with

Patients.

⑥Computer ⑦HD display⑧Printer

SOFTWARE CHARACTERISTICS

IMAGE ACQUISITION

Foot switch and software two kinds of acquisition,video recording mode, The image can bedynamic, static, full-screen capture, Each check can collect 100 color images

IMAGE PROCESSING

With the image dynamic, static comparison offunction, could be compared with the standardgraph, the captured image can be enlarged,reduced, negative image, marking, text labeling,local amplification, area circumference calcula-tion and other operations. More convenient for doctors to identify pathological changes

REPORT EDITING

Comes with 19 standard patient case report templates for easy editing and printing of case Reports. Could display 1-6 pictures on the same screen, report template can be designed and modified,and can output PDF file, to provide the basis for prevention of medical disputes

CLINICAL ANALYSIS

Professional patient case graphs (up to 175types), and could add patient case picture to thestandard graph repository for easy ClinicalComparison. Professional Clinical DiagnosticKnowledge Base provides a large number ofeditable clinical terms in conjunction with Rci'sautomated evaluation system to make theinspection more objective and accurate

QUERY STATISTICS

Cases can be queried in five ways, such as Case number, name, barcode, date of birth and date of Examination. The retrieved cases could be image display, data modification, preservation, Follow-up and video replay to facilitate hospital information management and improve management Efficiency.
