All-In-One System (Combining Flexible And Rigid Endoscopy)
Application Department
Leave A MessageLive ChatProduct Introduction
The fully integrated endoscopic system represents a revolutionary breakthrough in medical endoscopy, seamlessly integrating flexible and rigid endoscope technologies onto a single platform for the first time. Designed specifically for modern operating rooms, this system meets the clinical needs of multiple specialties, delivering unparalleled diagnostic and therapeutic flexibility alongside exceptional operational efficiency.

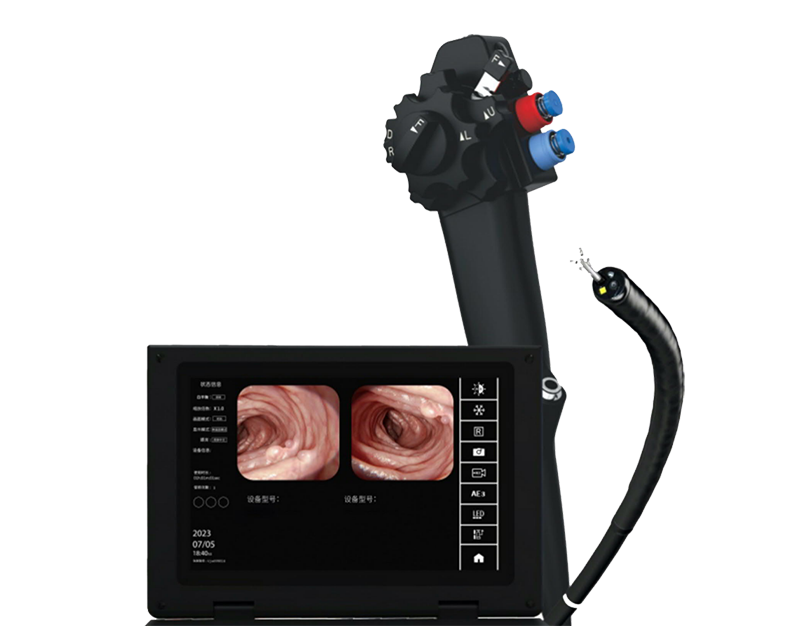

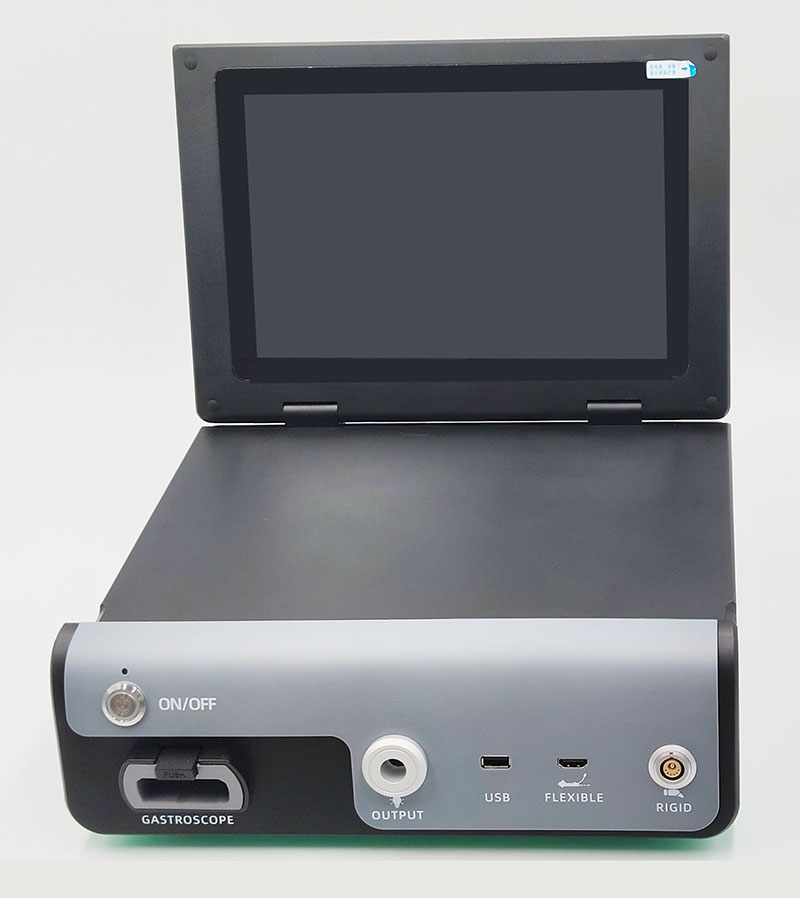

12.1' All-In-One lmage Processor
1. Supports multiple viewing windows at the same time.
2.white balance, photo capture, and video recording functions.
3.Excellent image quality and stable system.
4. Built-in pump for air and water delivery.
5.Real-time image output to an external monitor via a DVl port.
All-in-one system (combining flexible and rigid endoscopy)

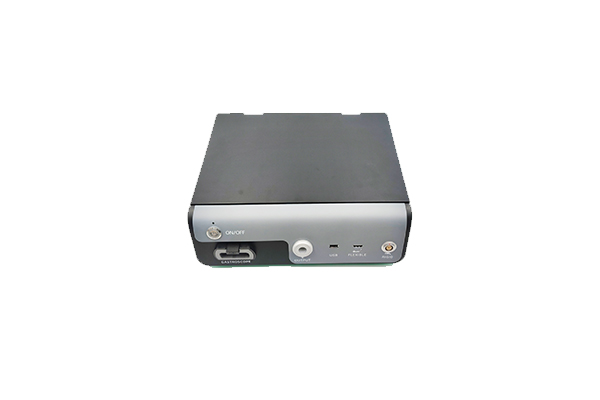

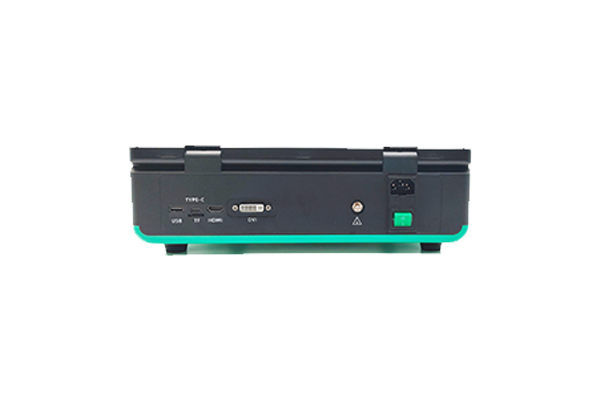

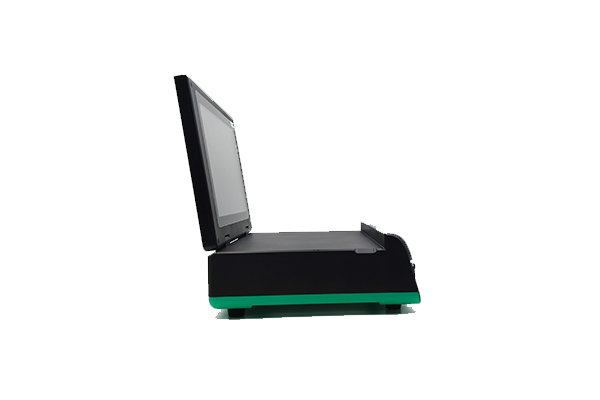

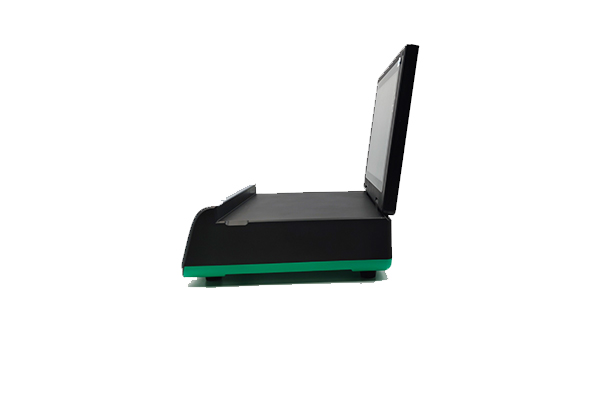

Product Gallery
Product Parameters
| Processor Model | RK-AIO-S12 | Air Pump Pressure | 26.7kPa-45kPa |
| Power supply input | AC 100-240V50/60Hz | weight | 4.3kg |
| Power supply Output | DC 12V/12A | Working EnvironmentTemperature | -20°C-70°C |
| Screen Size | 12.1" | External Interface | Gastroscope connectionport;USB-A endoscopeport;Light source port; Light source rigid endos-cope port:USB flash dri-ve interface; Type-c upg-rade interface;DVl video output; |
| Resolution | 1280*800 | ||
| Screen Type | Capacitive touch screen | ||
| Storage | 64G |
