Disposable Digital Flexible Ureteroscope RK-VL-12
- Ready to use immediately, convenient and efficient
- Stable and high-definition image quality
- Eliminate the risk of cross-infection
Application Department
Laser lithotripsy for ureteral and kidney stones, intrarenal exploration, and tumor biopsy
Leave A MessageLive ChatProduct Introduction
The disposable digital flexible ureteroscope is a minimally invasive surgical tool in urology. Its "single-use" design completely eliminates the risk of cross-infection, requires no sterilization or maintenance, and provides a consistently clear view. It is primarily used for procedures such as kidney stone fragmentation, intrarenal exploration, and tumor biopsy.
Screen Size:12.1"
Resolution:1280*800
External Interface:TYPE-C, HDMl output,
Three-phase power interface Screen type:Capacitive touch screen
Function: white balance,brightness adjustment,Photo and video recording

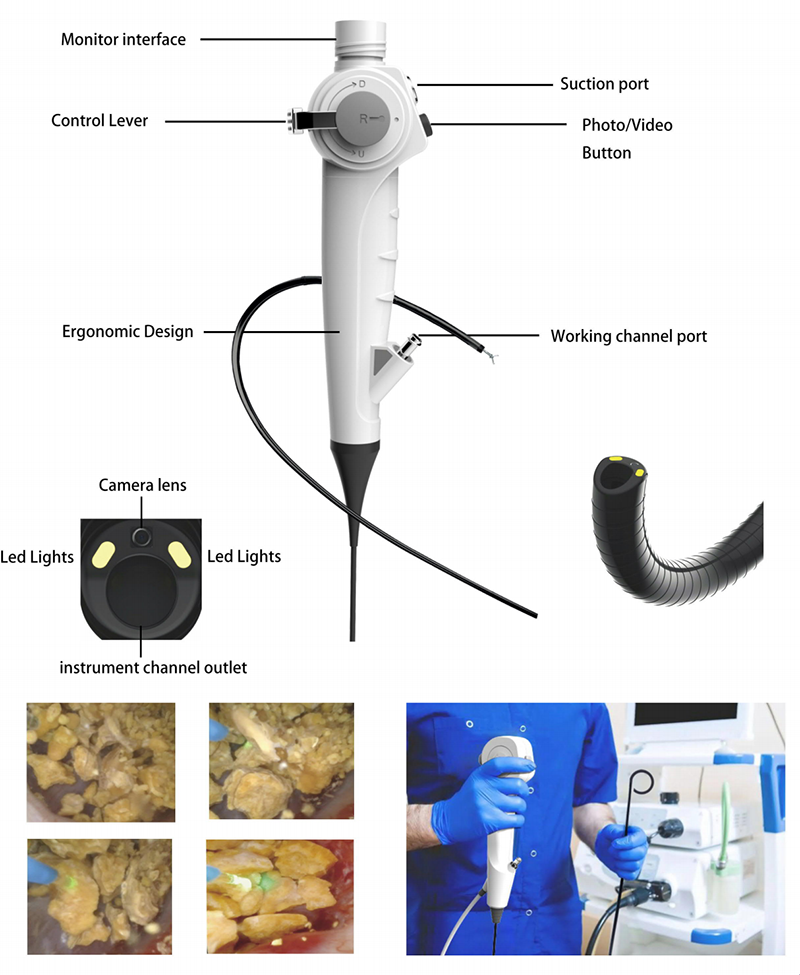

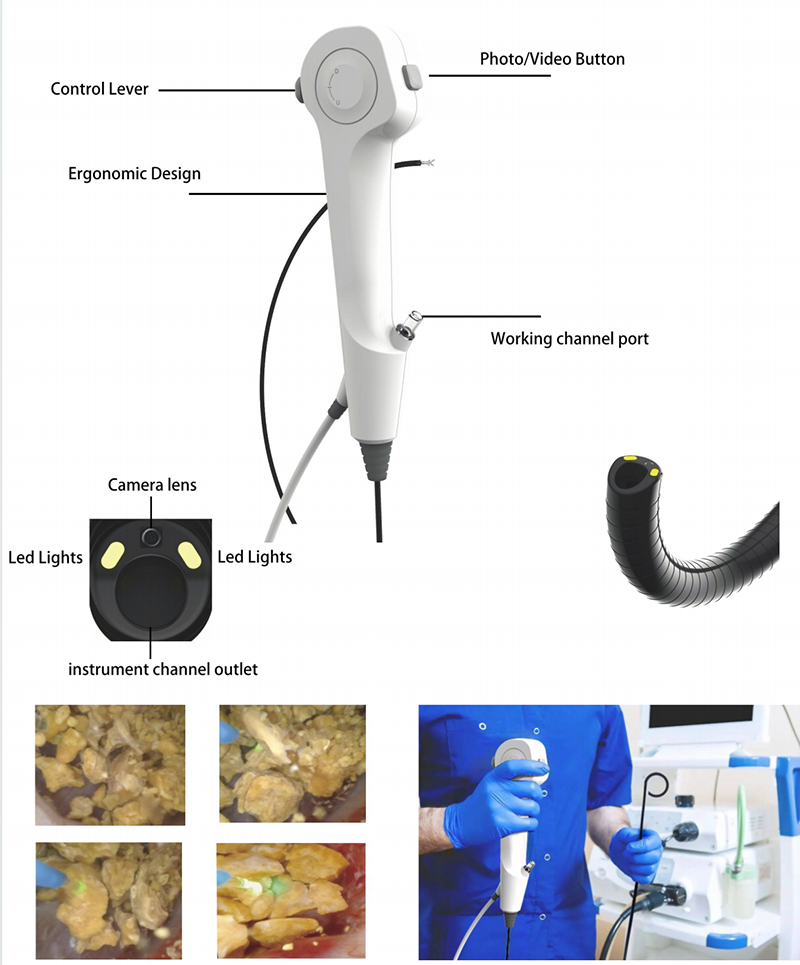

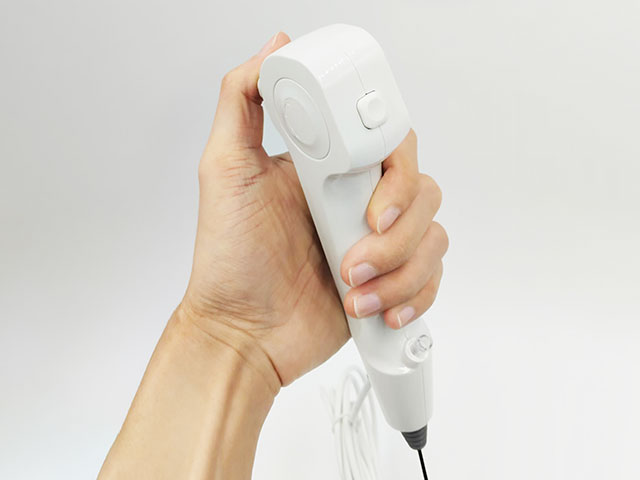

1.Ergonomic, Light weight handle with deflectionfreeze to reduce fatigue.
2.Avoid cross-infection and improve surgical safety.
3.Support real-time screen mirroring to a externallarge screen .
4.Advanced image quality and stable system
Product Gallery
Product Parameters
| Optical system | |
| Field of View | 120° |
| Direction of View | Forward viewing |
| Depth of Field | 5-50mm |
| Light Source | LED |
| Insertion section | ||||
| Model | RK-SNGSYJ2.0 | RK-SNGSYJ2.2 | RK-SNGSYJ2.5 | RK-SNGSYJ2.8 |
| Insertion Tube Outer Diameter | 2.0mm(6.0Fr) | 2.2mm(6.6Fr) | 2.5mm(7.5Fr) | 2.8mm(8.4Fr) |
| Working Channel inner Diameter | 0.8mm(2.4Fr) | 1.2mm(3.6Fr) | 1.2mm(3.6Fr) | 1.2mm(3.6Fr) |
| Resolution | 400*400 | |||
| Working Length | 650mm | |||
| Bending Section | ||||
| Deflection Angle | Up 300°,Down 300° | Up 275°,Down 275° | ||
| Total length | 860mm | |||
