Disposable Digital Flexible Rhinolaryngoscope
- No need for disinfection, eliminating cross-infection
- No need for disinfection, eliminating cross-infection
Application Department
ENT, Emergency
Leave A MessageLive ChatProduct Introduction

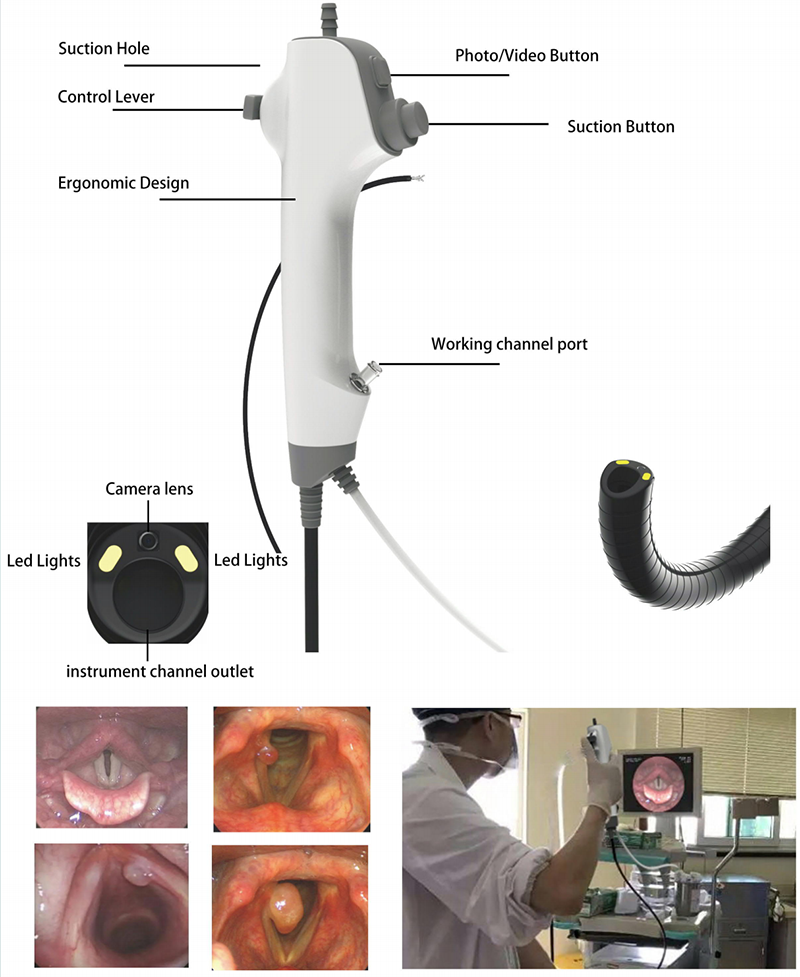

The Disposable Digital Flexible Rhinolaryngoscope is a ready-to-use diagnostic tool that integrates a miniature high-definition camera and an LED light source. Its disposable, aseptic design completely eliminates the risk of cross-infection; simply open the bag to connect to a smart device for examination, eliminating the need for cumbersome sterilization procedures and high maintenance costs.
External Interface: TYPE-C, HDMl output,
Three-phase power interface Screen type: Capacitive touch screen
Function: white balance, brightness adjustment,Photo and video recording
Product Gallery
Product Parameters
| Optical system | |
| Field of View | 120° |
| Direction of View | Forward viewing |
| Depth of Field | 5-50mm |
| Light Source | LED |
| Insertion section | |||||
| 160K pixels series (compatible Processor:RK-VL-12) | |||||
| Model | RK-SNGRH2000 | RK-SNGRH2812 | RK-SNGRH3816 | RK-SNGRH4222 | RK-SNGRH4826 |
| Insertion Tube Outer Diameter | 2.0mm | 2.8mm | 3.8mm | 4.2mm | 4.8mm |
| Working Channel inner Diameter | 2.0mm | 1.2mm | 1.6mm | 2.2mm | 2.6mm |
| Resolution | 400*400 | ||||
| 1.0 Megapixels series (USB Output,compatible with cellphone,tablet, computer,etc.) | |||||
| Model | RK-SNGRH3800 | RK-SNGRH4816 | |||
| Insertion Tube Outer Diameter | 3.8mm | 4.8mm | |||
| Working Channel inner Diameter | 0mm | 1.6mm | |||
| Resolution | 1280*720 | ||||
| Bending Section | |||||

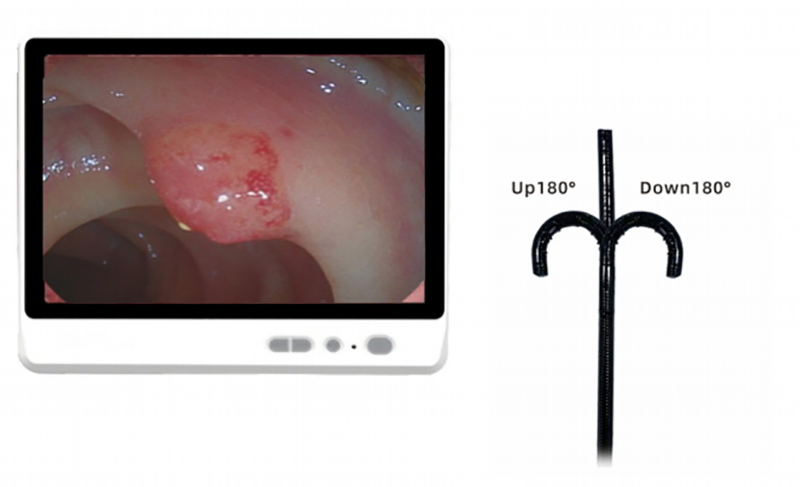

| Deflection Angle | Up 180°,Down180° | ||||
| Working Length | 350mm | ||||
