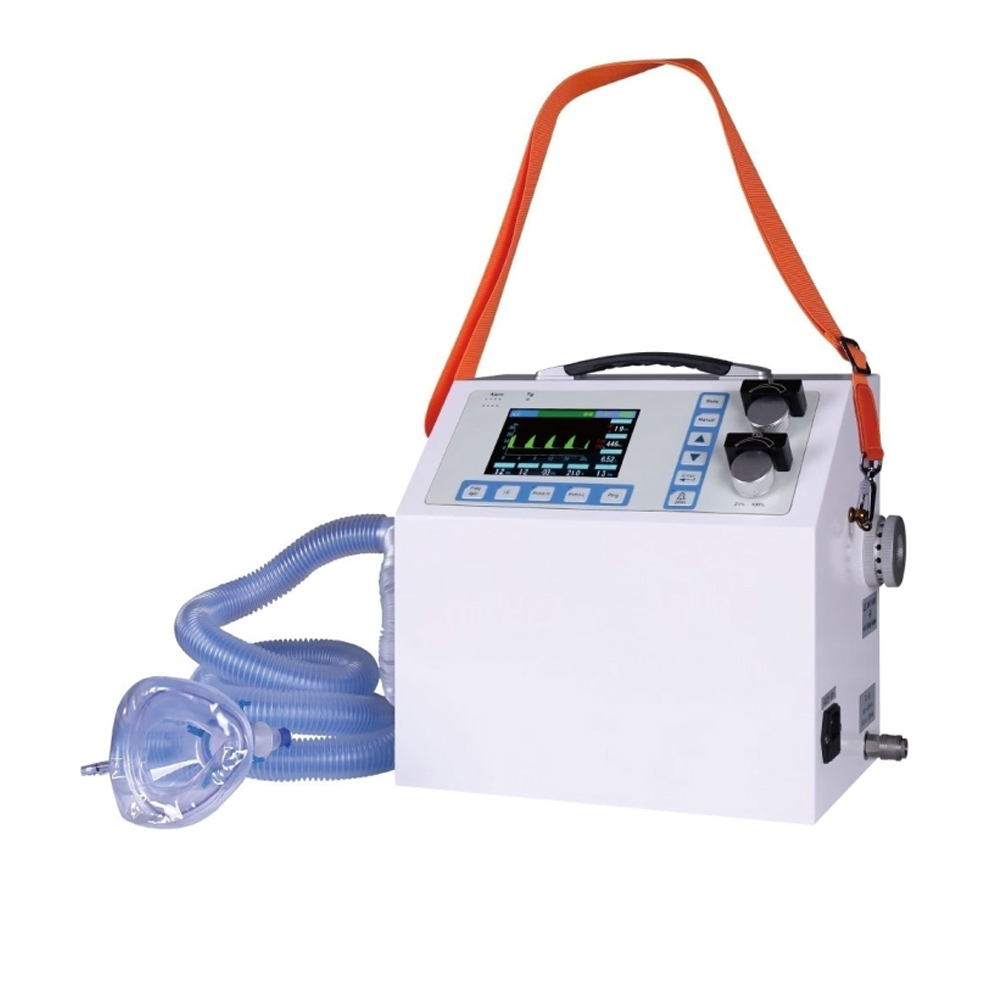

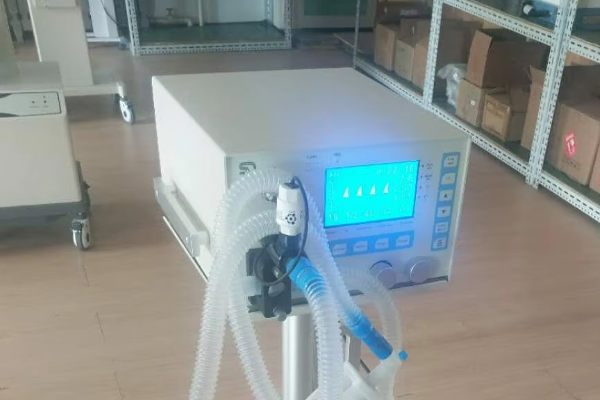

Emergency Ventilator RK-H3000C+

Feature

·No external gas source can be independently long-term work(Bringyour own air)

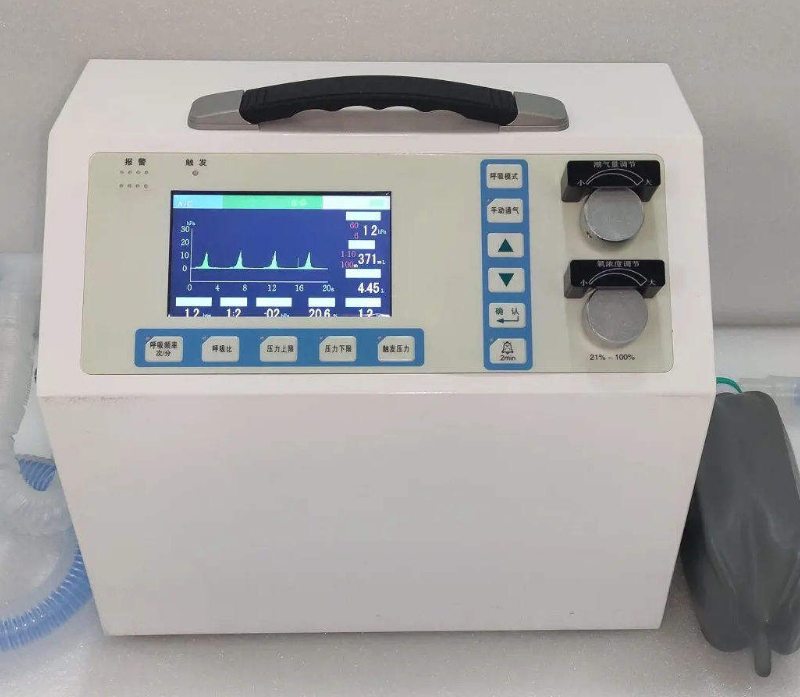

·The operator control panel with clear LCD display,Easy to operate

·Whole body is compact,easy to install on a ventilator tower crane,Ambulance

·Offers three power: AC., Car Power, Built-in battery

·Self-powered support ventilator work more than two hours

Main Unit:

·Application: Adult and Child

·Electronic control electronic drive

·Working mode: Time switch

·Respiratory modes: A/C, SIMV, SIGH, SPONT, Manual

·Tidal volume:0~1500mL

·Frequency:4~60bpm

·I:E:1:9~4:1(adjustable)

·FiO2: 21%~100% Continuously adjustable

·PTRIG:-2~OkPa

·High pressure limitation:2~6kPa

·Low pressure limitation:0~2kPa

·PEEP:0~2kPa(optional

·Alarm Mute: ≤120s

·Monitoring parameters: Tidal volume, MV, Total frequency, I:E rate,fTOT,PPEAK,O2 concentration, trigger pressure

·Alarm parameters: Inadequate supply of oxygen, Plimit-H, Plimit-L, Power outage,CPAP, Choke, VT-Low, High oxygen, Concentration, Gas missing

·Power supply: AC220V, 50Hz

Safety:

·Multiple pressure protection devices

·The machine has passed ISO9001, ISO13485 quality system certification
