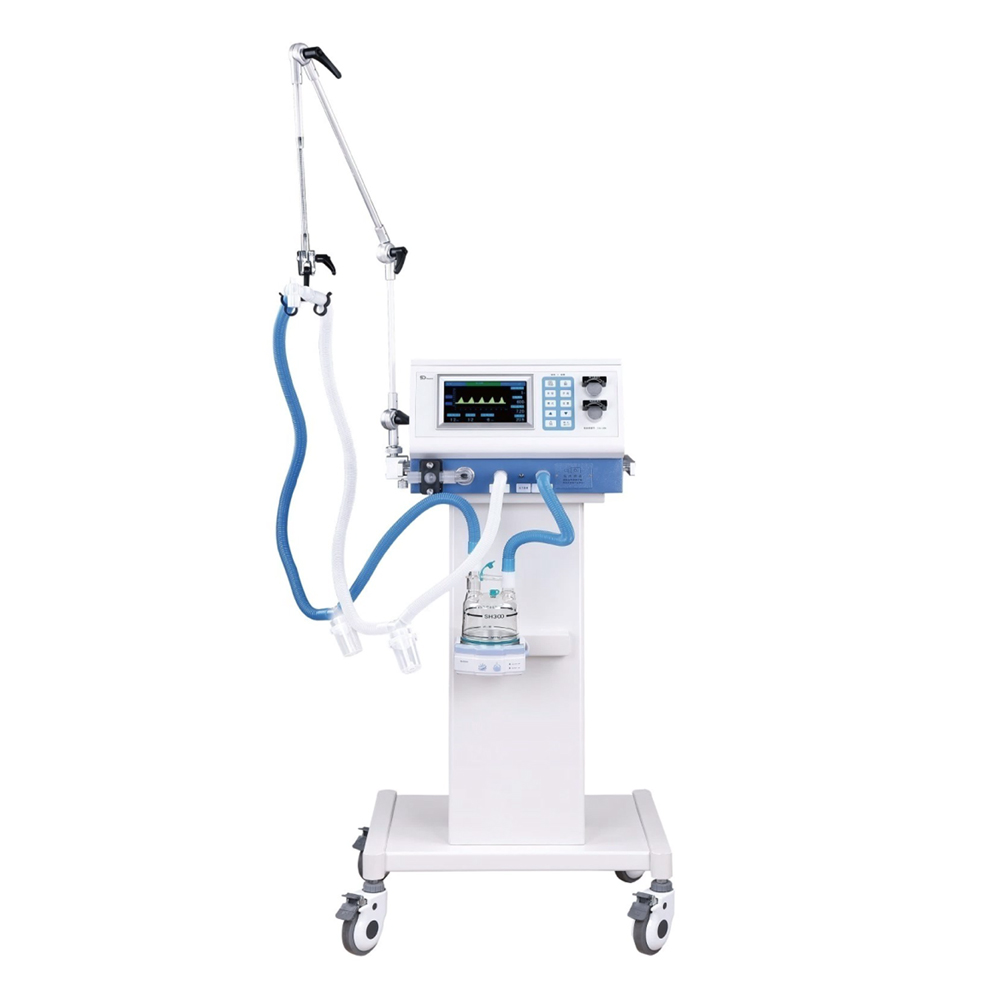

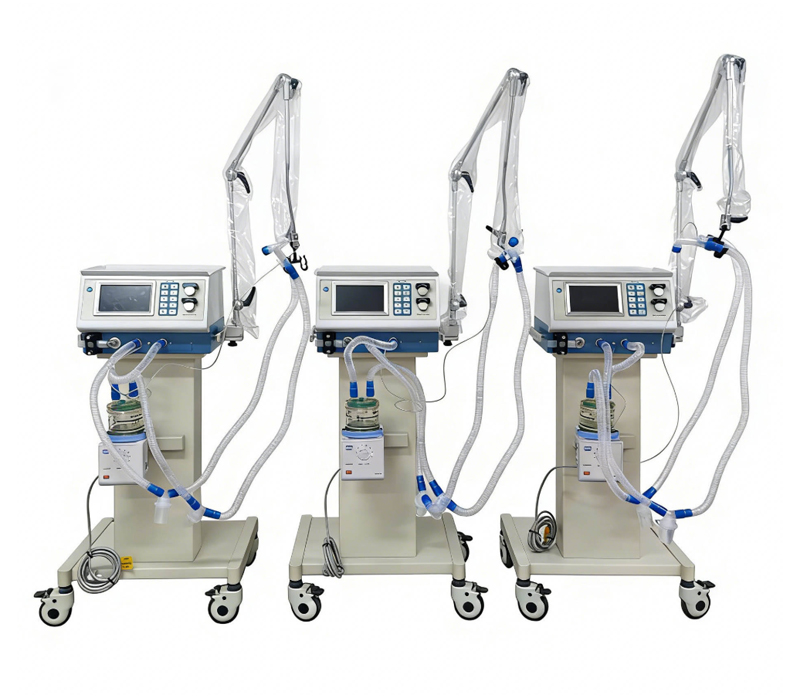

Emergency Ventilator RK-H3000B

Feature

·No external gas source can be independently long-term work(Bringyour own air)

·The operator control panel with clear LCD display, Easy to operate

·Whole body is compact, easy to install on a ventilator tower crane,Ambulance

·Friendly interface, easy operation and intuitive

·8-inch high-definition LCD touch screen

·Built in lithium battery, supporting a working time at least 120 minutes

Main Unit:

·Application: Adult and Child

·Electronic control electronic drive

·Working mode: Time switch

·Respiratory modes: A/C, SIMV, SIGH, SPONT, Manual, Apnoea-Ventilation

·Tidal volume:0~1500mL

·Frequency:2~99bpm

·I:E:1:10~4:1(adjustable)

·FiO2: 21%~100% Continuously adjustable

·PTRIG:-2~OkPa

·High pressure limitation:2~6kPa

·Low pressure limitation:0~2kPa

·PEEP:0~2kPa

·Alarm Mute: ≤120s

·Monitoring parameters: Tidal volume, MV, Total frequency; I:E rate,PPEAK, O2 concentration, trigger pressure

·Alarm parameters: Inadequate supply of oxygen, Plimit-H, Plimit-L,Power outage,CPAP, Choke, VT-Low, High oxygen, Low oxygen Concentration, Gas missing

·Power supply: AC220V, 50Hz

Humidifier：

·Temperature adjustment

·Overtemperature automatic power-off protection
