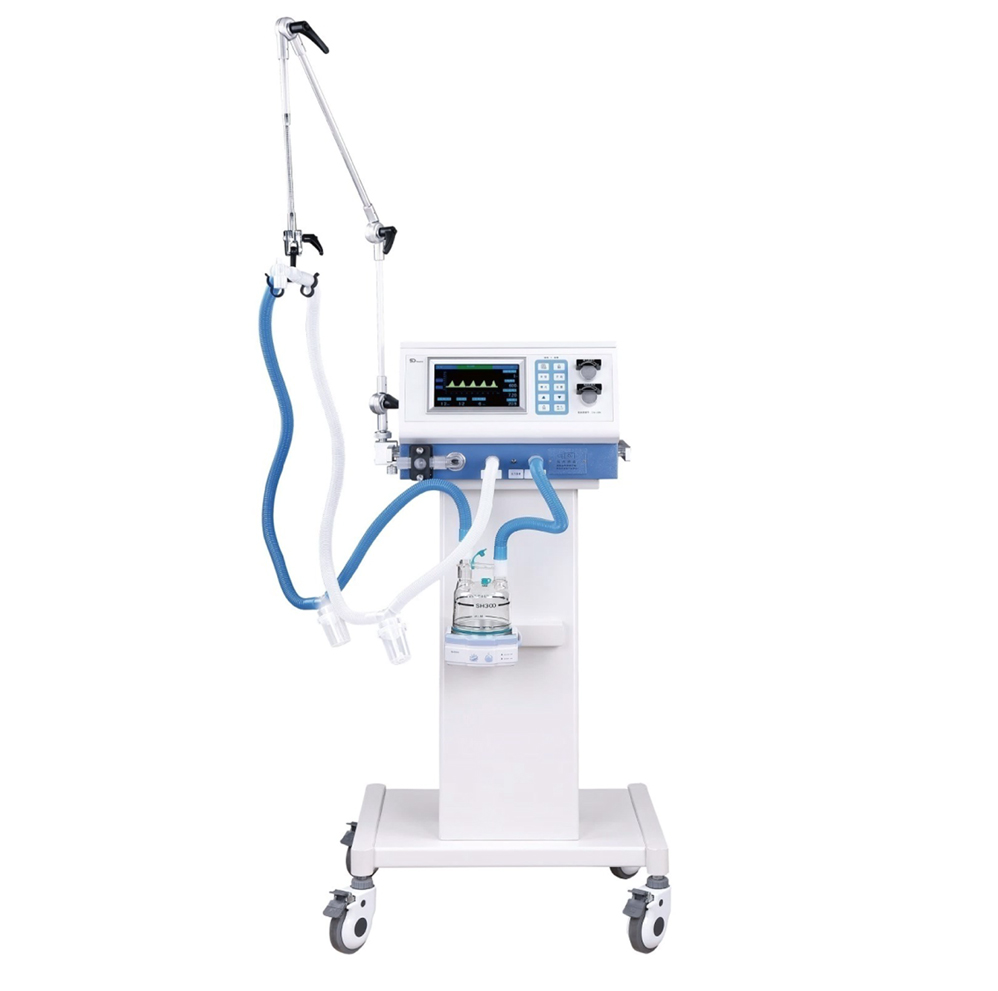

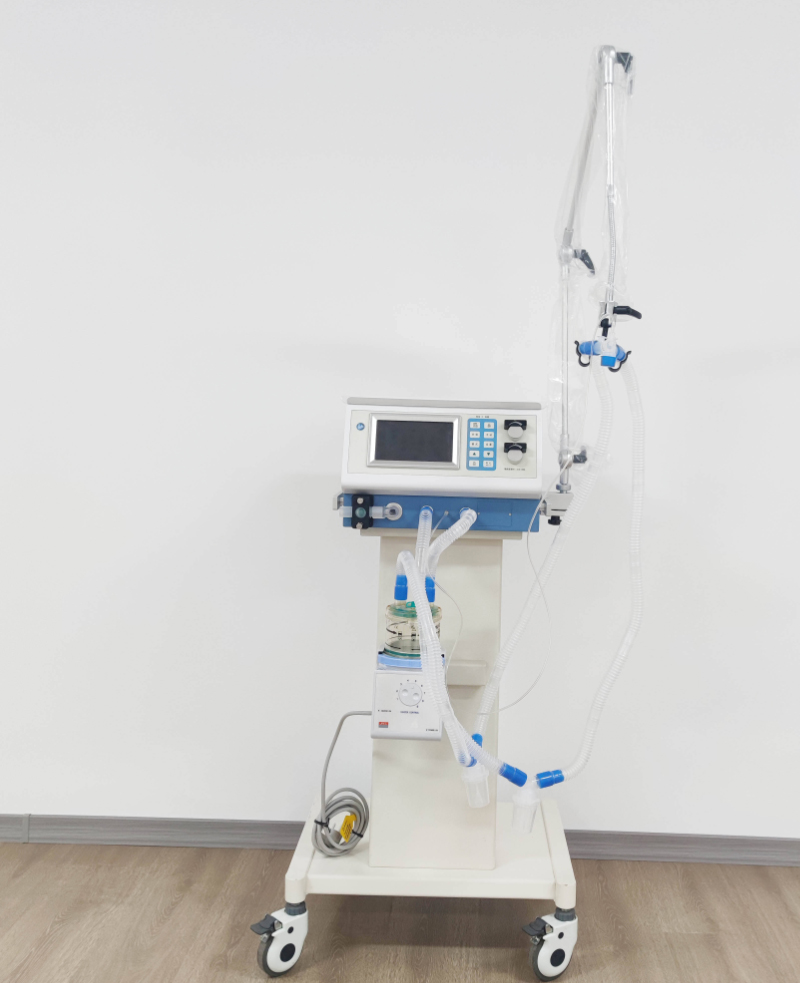

Ventilator RK-H3000A

Feature

·Type: Phematically driven electrically controlled

·Display screen: 12.1 inches,TFT display screen

·Respiratory mode: VCV,PCV,VC-SIMV,PC-SIMV,SIGH,SPONT,MMV, DEMO

·Graphical display Waveform: pressure-time, flowrate-time, volume-time

Loop graph: pressure-volume,

·Application: Adult and Child

·Power supply: AC 220V 50Hz

·Gas Pressure

 Oxygen: 0.28MPa~0.6 MPa Air: 0.28MPa~0.6 MPa

Main Unit:

·Main Setting parameters

    Tidal volume: 20-2000mL

    Respiratory frequency:1~100 bpm

    Inspiratory time : 0.1~12s

    Breath-holdtime: 0~50%

    Pressure triggering: - 20 ~ -1cmH2 O

    Flowrate triggering: 0.5~20 L/min

    PEEP: 0~40 cmH2O

    Pressure support: 0~60 cmH2 O

    Pressure control: 5~60 cmH2 O

    Oxygen concentration: 21~100%

    Pure oxygen ventilation:Pure oxygen ventilation 2min

·Monitoring parameters

    Inspiratory tidal volume,Expiratory tidal volume,Minute volume,

    Ppeak,FiO2,PEEP,Total respiration frequency,P-T,F-T,Vt-T,P-V,F-V

·Alarm parameter

    Tidal volume,Respiratory frequency,Airway pressure,PEEP,

    Oxygen concentration, Minute volume,Apnea alarm,

    Power failure alarm,Gas failure alarm

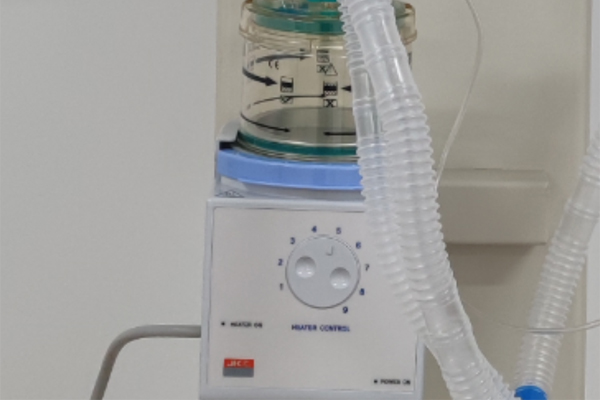

Humidifier：

·Temperature adjustment

·Overtemperature automatic power-off protection
