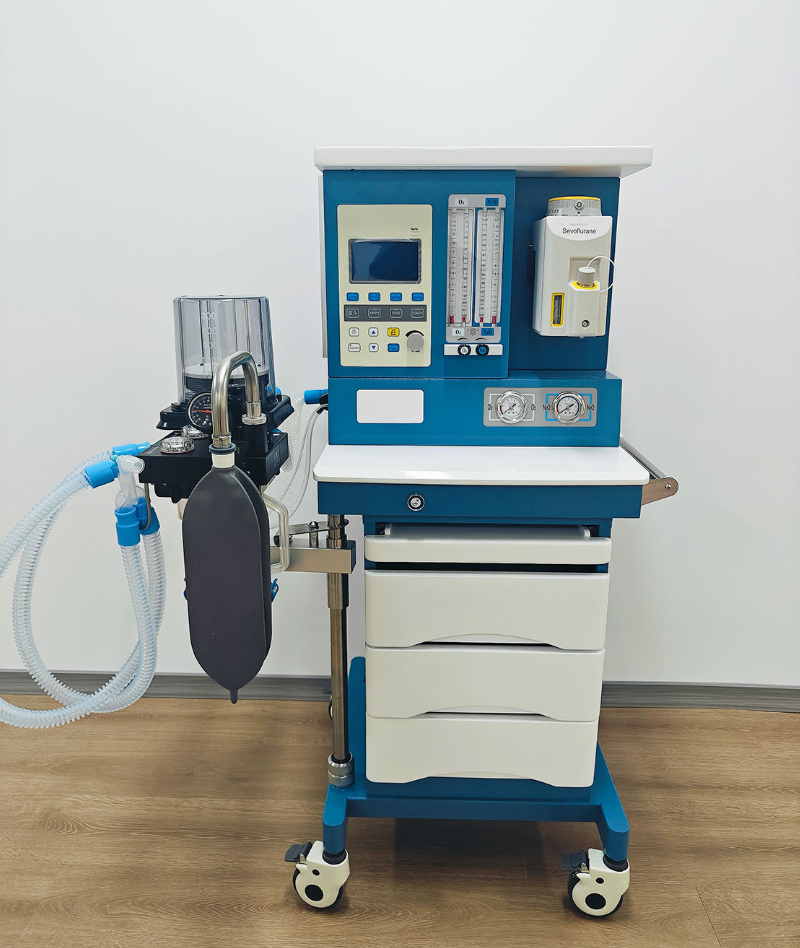

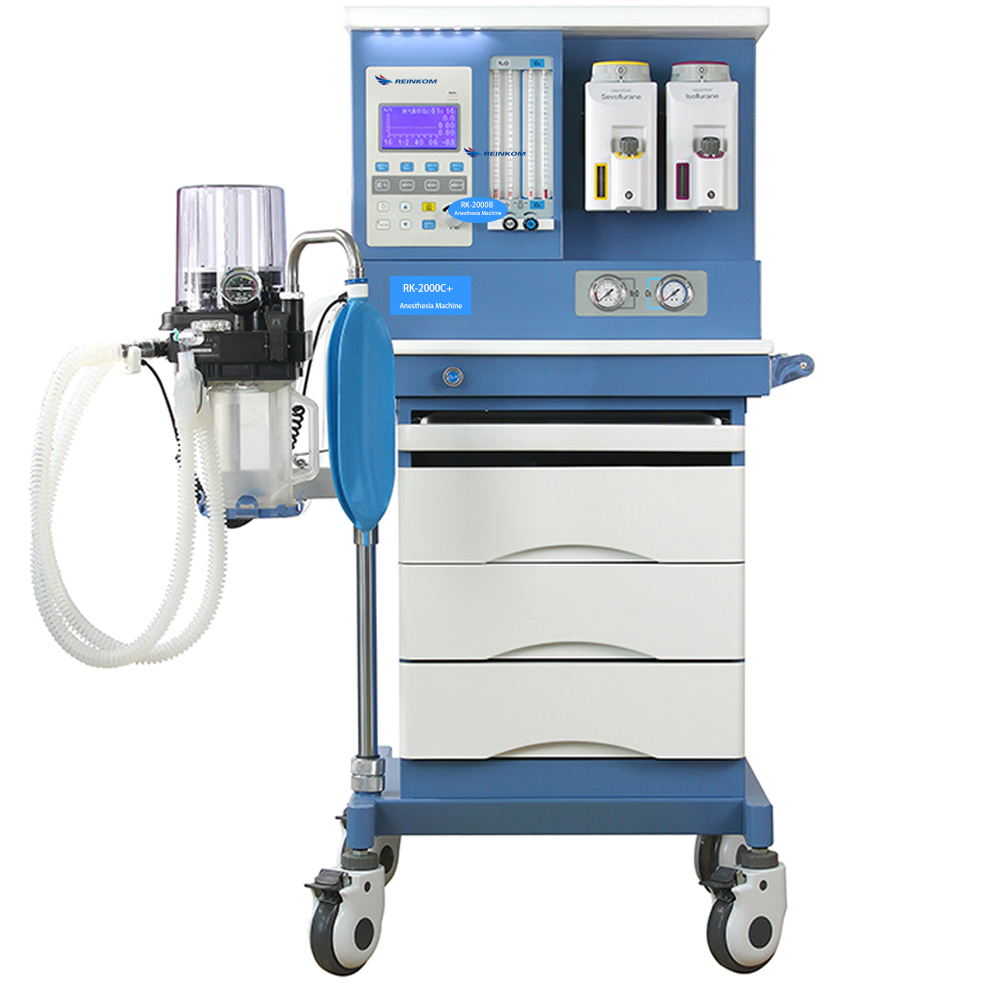

Anesthesia Machine RK-M2000C+

·Integrated design, compact structure, fine and elegant

·High quality, durable,friendly operation and simple maintenance

·Rugged metal enclosure

·Highlight LED ceiling light

·Retractable WordPad, save space

·Lift arm mechanism, convenient and flexible operation

·6" high-luminance LCD display

Main Unit:

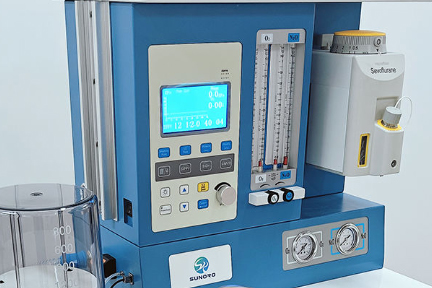

·6 inch high-luminance LCD display

·Working modes: For the closed system, half closed system and half open system

·Application: Adult and Pediatric

·Low gas supply alarm: when O2 supply pressure is over low, the

machine will arise > (longer than) 7 seconds audible alarm.

·High pressure limitation: when airway pressure is higher than pre-set figure, the

machine will automatically start protection function. The airway pressure will stop

increasing (not increase any more) to keep patient safe.

·Low pressure protection: when O2 gas supply pressure is lower than 0.1MPa, the

machine will automatically cut off N2O supply.

·O2 Flush: 25L/min~75L/min

·Gas Supply: O2: 0.28MPa~0.6MPa N2O: 0.28MPa~0.6MPa

·Power supply: AC 220V, 50 Hz

Flowmeter:

·O2/ N2O two tubes Flowmeter (0~1L/min 1~10L/min)

·Linkage of O2 and N2O, keep oxygen concentration over 25%

Anesthesia Ventilator:

·Bellow for Adult 1 piece, Optional: Bellow for Pediatric 1 piece

·Pneumatically driven and electrically control

·Monitoring: Tidal volume, Frequency, I/E ratio; Peak airway pressure, Waveform(Pressure- time)

·Respiratory modes: under Manual control or Automatic control, IPPV, SIGH, SIMV/f/2, SIPPV

·Tidal volume:0,50~ 1500mL

·Respiratory frequency:2~ 99bpm

·I:E:5:1 ~ 1:8 (adjustable)

·PTRiG: -2 ~ OkPa

·High pressure limitation:2~ 6kPa  Low pressure limitation:0 ~ 2kPa

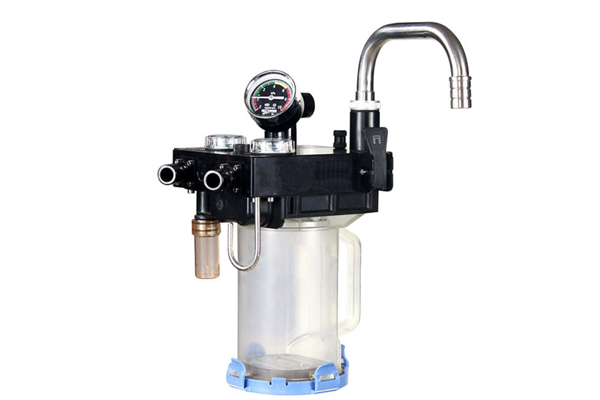

Circle Absorber:

·New launching integrated CO2 Absorber, could be high temperature 134°C sterilized.

·Cup type Canister, around 2.5L, easily and fast change soda lime.

Anesthesia Vaporizer:

·High precise Anesthesia Vaporizer (Enflurane, Halothane, Isoflurane, Sevoflurane)

·Sevoflurane adjustment scope: 0~ 8% Vol;

Enflurane, Halothane, Isoflurane adjustment scope: 0~ 5%Vol

·Automatic compensation of flow, temperature and pressure

·Self-lock and interlock

·Volume:>250mL
