Digestive tract endoscopy,Respiratory endoscopy,Urology,Gynecology
Leave A MessageLive ChatDisposable Hot Biopsy Forceps is a minimally invasive surgical instrument that combines electrocoagulation hemostasis and tissue sampling functions. It is designed for endoscopic surgery and is particularly suitable for lesions that require tissue sampling and hemostasis at the same time.
USAGE:
Tissue sampling from alimentary tract or respiratorytract in the combined use ofendoscope.

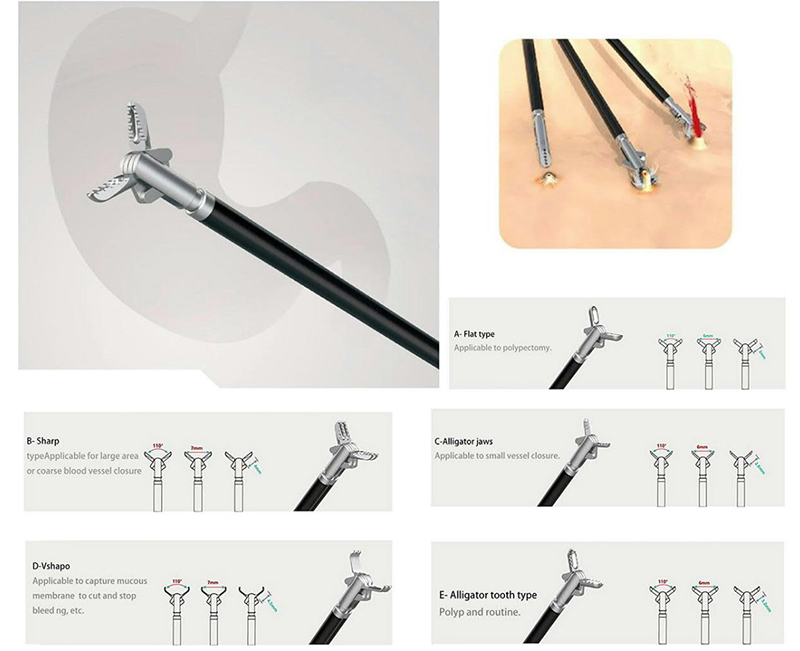

A- Flat type- Applicable to polypectomy.
B- Sharp type- Applicable for large area or coarse blood vessel closure.
C-Alligator jaws- Applicable to small vessel closure
D-V shape-Applicable to capture mucous membrane to cut and stop bleeding, etc.
E- Alligator tooth type- Polyp and routine.
FEATURES:

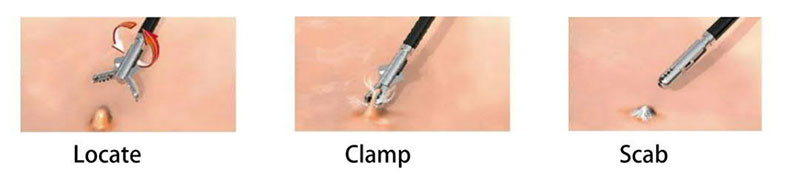

Tissue sample collection case: Applicable to each step of polypectomy
360°Synchronous rotation, more accurate operation Anti slip jaw design, easy to grasp tissue

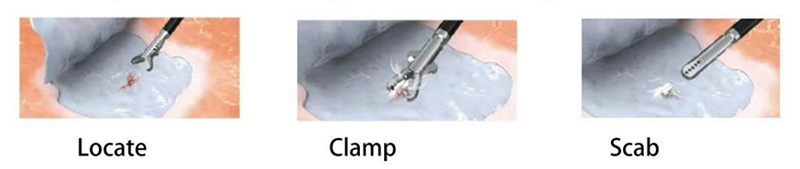

Tissue sample collection case: Applicable to each step of vascular closure.
1.The iaw aroove is desianed to concentrate the current on the outer mouth of the clamp cupeffectively stopping bleeding.
2.The anti adhesion design of the jaw effectively prevents excessive scabbing of the wound.
3.Upper and ower digestive tract has improved the design of jaw shape to adapt to the skinand thick physiological
characteristics of different parts of the digestive tract.
Model | Insertion Diameter | Working Length | Head features | Opening Length | Remark |
HFM-FD-23-180-A | 2.4mm | 1800mm | A-Flat mouth type | 3mm士0.5 | Gastroscopy |
HFM-FD-23-230-A | 2.4mm | 2300mm | Colonoscopy | ||
HFM-FD-23-180-B | 2.4mm | 1800mm | B-Spitzer | 4mm士0.5 | Gastroscopy |
HFM-FD-23-230-B | 2.4mm | 2300mm | Colonoscopy | ||
HFM-FD-23-180-C | 2.4mm | 1800mm | C-Crocode | 3mm士0.5 | Gastroscopy |
HFM-FD-23-230-C | 2.4mm | 2300mm | Colonoscopy |
