Disposable Endoscope Stone Extraction Basket

hot
  • Convenient and efficient operation
  • High safety
  • Good stone picking effect

Application Department

Gastroenterology,Urology Department,respiratory system

Leave A MessageLive Chat

Product Introduction

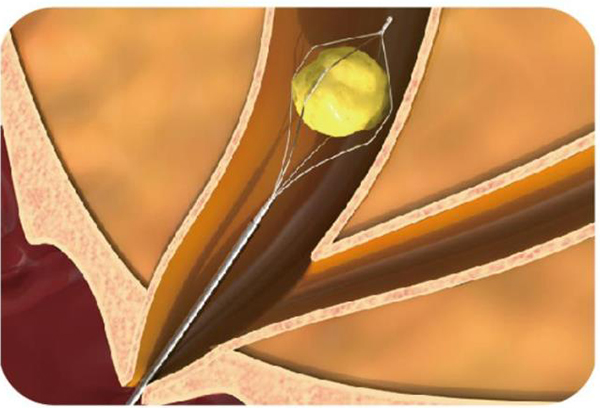

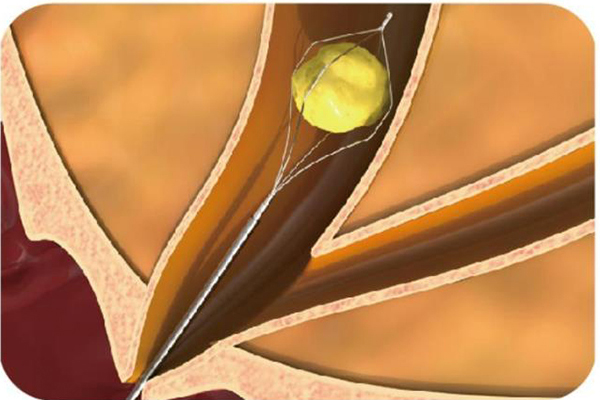

When performing endoscopic surgery, the doctor first inserts the endoscope into the patient's body, finds the location of the stone, and then inserts the stone retrieval basket through the working channel of the endoscope. After reaching the site of the stone, open the basket by operating the handle, cover the stone, tighten the basket, firmly fix the stone in the basket, and finally remove the stone from the body together with the endoscope.



USAGE:


Endoscope Stone Extraction Basket Usage


lt is used for removal of gallstone in biliary duct,or forgein matters in upper and lower digestivetract.

Endoscope Stone Extraction BasketHFMA-1807-20.jpg


FEATURES:

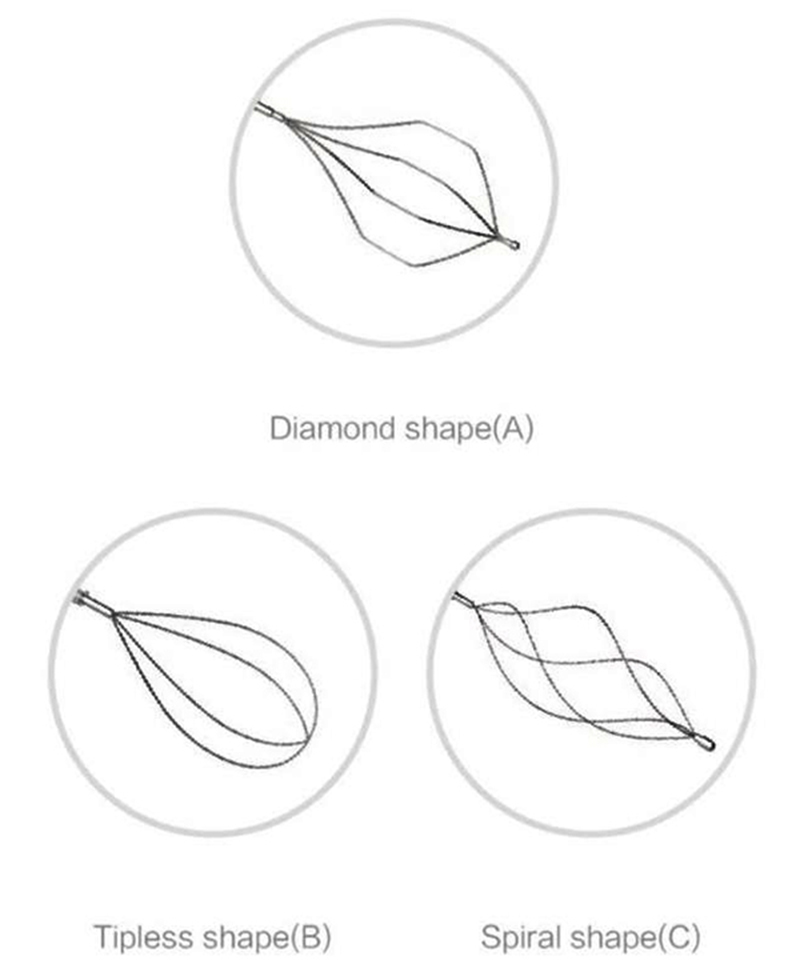

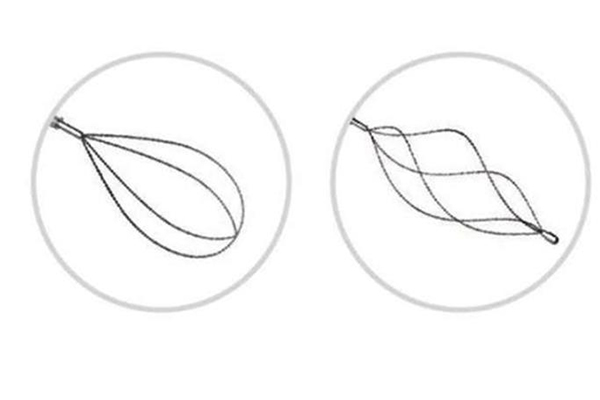

Disposable Endoscope Stone Extraction Basket type


lnnovational handle design, with functions of push, pull and rotation,easier to grasp gallstone and foreign body.

Convenient to inject contrast medium with injection port on handle.

Made by advanced alloyed materials, ensures good shape reten-tion even after difficult stone removal.

Accept customization, can meet different requirements.

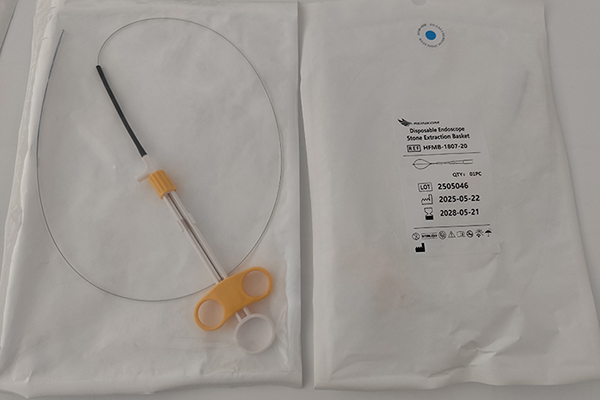

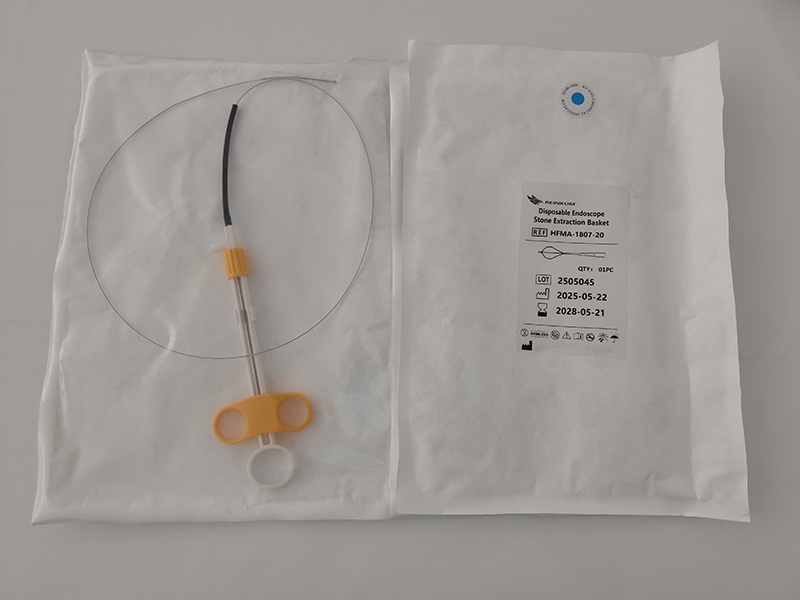

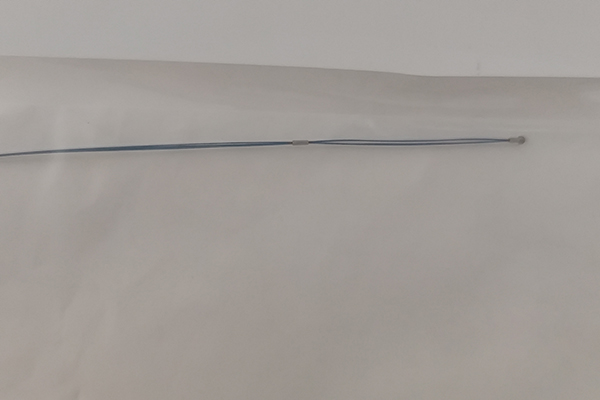

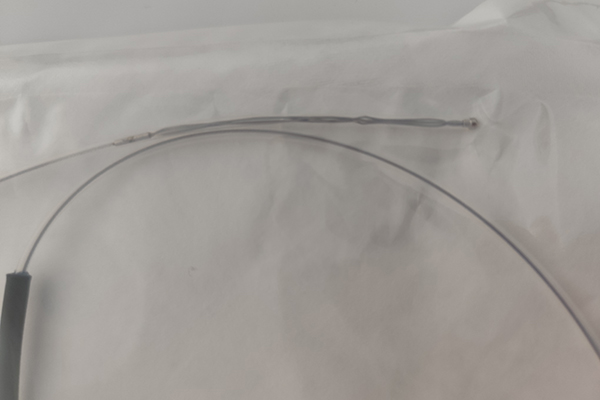

Product Gallery

Product Parameters

ModelDiameter(mm)

Length(mm)

Length(mm)Endoscopic Channel(mm)

Characteristics

HFMA-1807-201.8
7002040

Diamond

Shape

HFMA-2419-302.4
1900
30
60
HFMB-1807-201.87002040TiplessShape
HFMB-2419-302.4190030
60
HFMC-1807-201.87002040Spiral Shape
HFMC-2419-302.41900
3060
